Популярные исполнения:

UCP 200/300

Общий PDF каталог корпусов - 3,61MB
Маркировка производителей

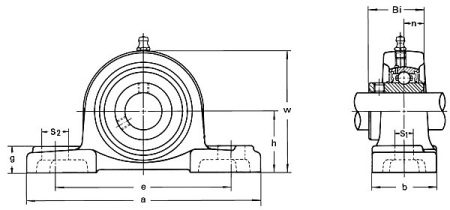

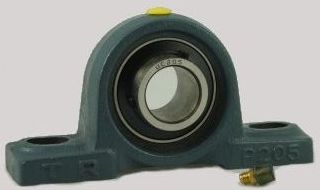

UCP

UCP 200

Unit No.

Dimensions
  mm


Bolt Size mm

Bearing No.
Housing No.

Weight
(kg)

d
h
a
e
b
s1
s2
g
w
t
B
n
UCP201
12

30.2

127

95

38

13

19

14

62

44.5

31

12.7

M10

UC201

P203

0.69

UCP202

15

30.2

127

95

38

13

19

14

62

44.5

31

12.7

M10

UC202
P203

0.69

UCP203

17

30.2

127

95

38

13

19

14

62

44.5

31

12.7

M10

UC203

P203

0.68

UCP204

20

33.3

127

95

38

13

19

15

71

48

34.1

14.3

M10

UC204

P204

0.66

UCP205
25
36.5

140

105

38

13

19
15
71

48

34.1

14.3
M10
UC205
P205
0.81
UCP206

30

42.9

165

121

48

17

20

17

84

53

38.1

15.9

M14

UC206
P206

1.24

UCP207

35

47.6

167

127

48

17

20

18

93

59.5

42.9

17.5

M14

UC207
P207

1.58

UCP208
40

49.2

184

137

54

17

20

18

100

69

49.2

19

M14

UC208

P208

1.89

UCP209

45

54.0

190

146

54

17

20

20

106

69

49.2

19

M14

UC209

P209

2.14

UCP210

50

57.2

200

159

60

20

23

21

113

74.5

51.6

19

M16

UC210

P210

2.66

UCP211

55

63.5

219

171

60

20

23

23

125

76

55.6

22.2

M16

UC211

P211

3.31

UCP212

60

69.8

241

184

70

20

23

25

138

89

65.1

25.4

M16

UC212

P212

4.90

UCP213

65

76.2

265

203

70

25

28

27

150

89

65.1

25.4

M20

UC213

P213

5.15

UCP214

70

79.4

266

210

72

25

28

27

156

74.6

30.2

M20

UC214

P214

6.20

UCP215

75

82.6

275

217

74

25

28

28

162

77.8

33.3

M20

UC215

P215

7.16

UCP216
80

88.9

292

232

78

25

28

30

174

82.6

33.3

M20

UC216

P216

8.10

UCP217

85

95.2

310

247

83

25

28

32

185

85.7

34.1

M20

UC217

P217

9.81

UCP218

90

101.6

327

262

88

27

30

33

198

96

39.7

M22

UC218

P218

11.96



UCP 300

Unit No.


Dimensions
   mm


Bolt Size mm

Bearing No.
Housing No.

Weight
(kg)

d
h
a
e
b
s1
s2
g
w
B
n
UCP305
25
45
175
132
45
17
20
15
85
38
38
M14
UC305
P305
1.4
UCP306
30
50
180
140
50
17
20
18
95
43
17
M14
UC306
P306
1.8
UCP307
35
56
210
160
56
17
25
20
106
48
19
M14
UC307
P307
2.8
UCP308
40
60
220
170
60
20
27
22
116
52
19
M16
UC308
P308
3.0
UCP309
45
67
245
190
67
20
30
24
129
57
22
M16
UC309
P309
4.1
UCP310
50
75
275
212
75
20
35
27
143
61
22
M16
UC310
P310
5.8
UCP311
55
80
310
236
80
25
38
30
154
66
25
M20
UC311
P311
7.4
UCP312
60
85
330
250
85
25
38
32
165
71
26
M20
UC312
P312
9.4
UCP313
65
90
340
260
90
25
38
33
176
75
30
M20
UC313
P313
10
UCP314
70
95
360
280
90
27
40
35
187
78
33
M22
UC314
P314
12
UCP315
75
100
380
290
100
27
40
35
198
82
32
M22
UC315
P315
14
UCP316
80
106
400
300
110
27
40
40
210
86
34
M22
UC316
P316
18
UCP317
85
112
420
320
110
33
45
40
220
96
40
M27
UC317
P317
20
UCP318
90
118
430
330
110
33
45
45
235
96
40
M27
UC318
P318
24
UCP319
95
125
470
360
120
36
50
45
250
103
41
M30
UC319
P319
29
